MS300

MS300 series

Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology

MS300

Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system —all included in the MS300 series with drive size reduced up to 40%.

Applications

Machine tools, textile machines, woodworking machines, packaging machines, electronics, fans, pumps, air compressors

Specifications

  • Supports Open loop control of IM and PM motors
  • Output frequency:
    Standard models: 0 to 599 Hz
    High speed models: 0 to 1,500 Hz (V/f control for IM motor only)
  • Dual rating design:
    120% for 60 seconds for Normal Duty (ND)
    150% for 60 seconds for Heavy Duty (HD)
  • Built-in PLC program with 2K steps capacity
  • Built-in brake choppers for the entire series
  • Removable 5-digit LED keypad for remote operation
  • Safety standard compliance: Safe Torque Off (SIL2/PLd)
  • Multi-motor Control，built-in four IM motor control parameters
  • Optional built-in Class A (C2) standard EMC filter for 1-phase 230V, 3-phase 460V models
  • One high speed pulse input terminal MI7 built-in with maximum speed up to 33kHz
  • One high speed pulse output terminal DFM built-in with maximum speed up to 33kHz
  • New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
  • Built-in RS-485 (Modbus) and various communication card options : CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, PROFINET

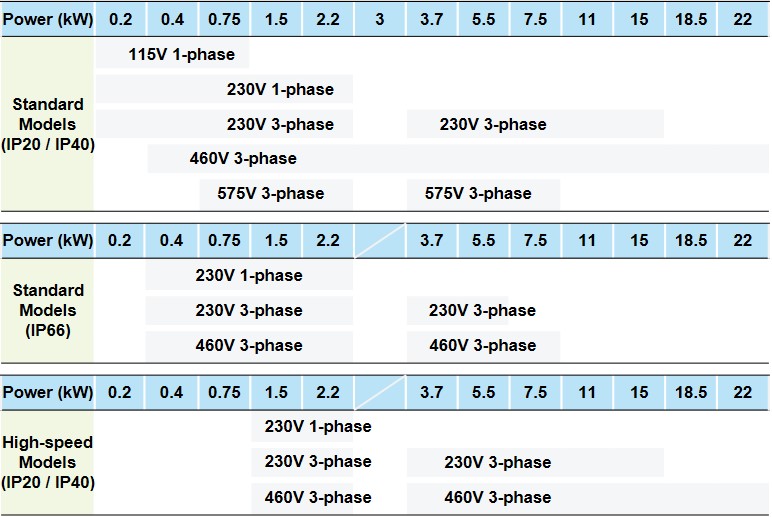

Power range

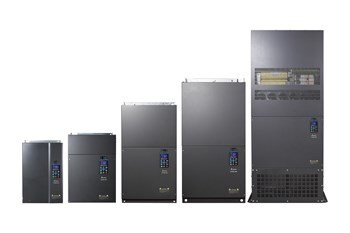

C2000 - HS Series

C2000-HS Series

C2000-HS Series

High-speed centrifugation is widely applied to fluid-mechanical devices to increase efficiency and save both time and equipment cost. During operation, a fluid-mechanical device rotates at high speed to gain a faster flow rate, and the frequency increases as the motor rotation speed increases.

With years of experience in motor drive and control, Delta introduces the High Frequency Motor Drive C2000-HS Series with outstanding performance (output frequency up to 1,500 Hz) and energy-efficient features to fulfill the demand for high speed motor control. The C2000-HS Series is an excellent choice for your fluid mechanical devices

Applications

  • HVAC Systems – Chiller Units
  • Sewage Treatment Plants – Centrifugal Turbo Blowers
  • Power Plants – Micro Gas Turbine Generators

Features & Benefits

  • High-speed operation: Enhanced performance and control with max. operating frequency up to 1,500 Hz
  • Direct drive mechanism: Reduced system size, higher efficiency and lower cost
  • Compact design: No need to adopt a drive of higher power range when matching with a high-capacity motor. Reduces installation space
  • Sensorless motor control technology: Built-in motor ID parameters for sensorless control with steadier output speed and optimized dynamic response. With FOC sensorless control, the speed control precision reaches 1:100
  • New IGBT technology: Maintains high motor drive efficiency of up to 98% while running at a high carrier frequency. Substantially reduces the derating limit of the output current
  • Built-in DC reactor: Suppresses high harmonics and compliant with EN61000-3-12

Specifications

Delta Servo Motor & Drive

Delta Servo Motor & Drive

Delta Servo Motor & Drive

To meet the requirements of general-purpose machine tools and enhance the competitive advantage in the industrial automation market, Delta Electronics, Inc. is pleased to announce that the new high-performance and cost-effective ASDA-B2 series servo motors and drives has launched into the market.

Delta EL Series drive

Delta EL Series drive

Delta EL Series drive

Delta’s VFD-EL-W series is the new generation compact vector control drive. Simple, delicate and durable design inherits Delta’s superior drive technology.

– Various essential functions are built-in as standard, including: Multi-step Operation; Torque Compensation; PID Control; Multi-Pump Control; Water Supply at Constant Pressure; Leakage Detection function and so on.

– It also with complete built-in protection mechanism, such as: Over-current; Over-voltage; Low-voltage; Over-heat; Over-load; Over-torque; Phase Loss Protection and so on.

VFD-EL-W not only saves the extra cost but also increase the market competitiveness with the best technics.
